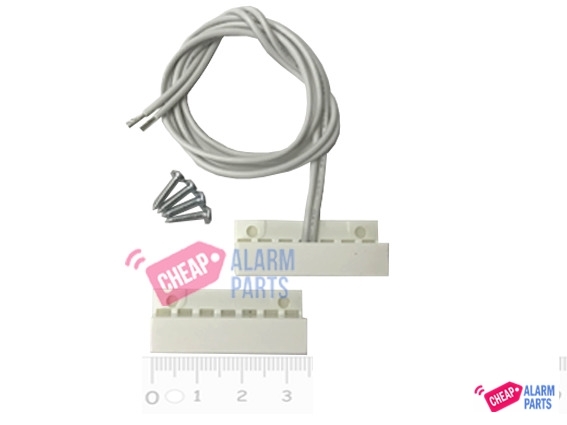

Flange Mount Contact and Magnet (Center Leads)





Quick Overview:

  • Closed loop.
  • Flange mount with special adhesive.
  • Special Adhesive on back
  • Available from Cheap Alarm Parts.
  • Center leads.
  • Available in Brown or White.
  • 22 AWG.
  • 18" Leads minimum (Longer Available).
  • FM 106 has a "Clean Break" Flange Removal.
  • Clean break flange removal.




The Blurb:

The contacts are available in brown or white. Both models are flange mountable with special adhesive and have leads that come from the center of the contact. Both models have a "clean break" flange removal.



All images and text are copyright Cheap Alarm Parts.





Specifications:

Gap Width: 25 mm (1 in.)
Dimensions: 7.62 mm x 33.78 mm x 13.46 mm (0.3 in. x 1.33 in. x 0.53 in.)
Wire Lead Type: 0.8 mm (0.029 in.) 22 AWG, 7 stranded
Wire Lead Length: 46 cm (18 in.)
Switch Configuration Type: Single pole single throw (SPST)
Maximum Contact Resistance: 150 μΩ
Minimum Breakdown Voltage: 250 VDC
Insulation Resistance: 10(10) Ω
Electrostatic Cap: 0.3 pF
Contact Capacity: 10 VAC
Maximum Conductive Current: 1.0 A
Maximum Voltage: 100 V
Operating Temperature Range: -45.6°C to +95.6°C (-50°F to +140°F)




All images and text are copyright Cheap Alarm Parts.
Please don't copy them and put them on your website. Seriously. It makes us cranky.

(FM106W)

SKU FM106W
Brand Tane
Shipping Weight 0.1000kg
Shipping Width 0.120m
Shipping Height 0.070m
Shipping Length 0.240m
