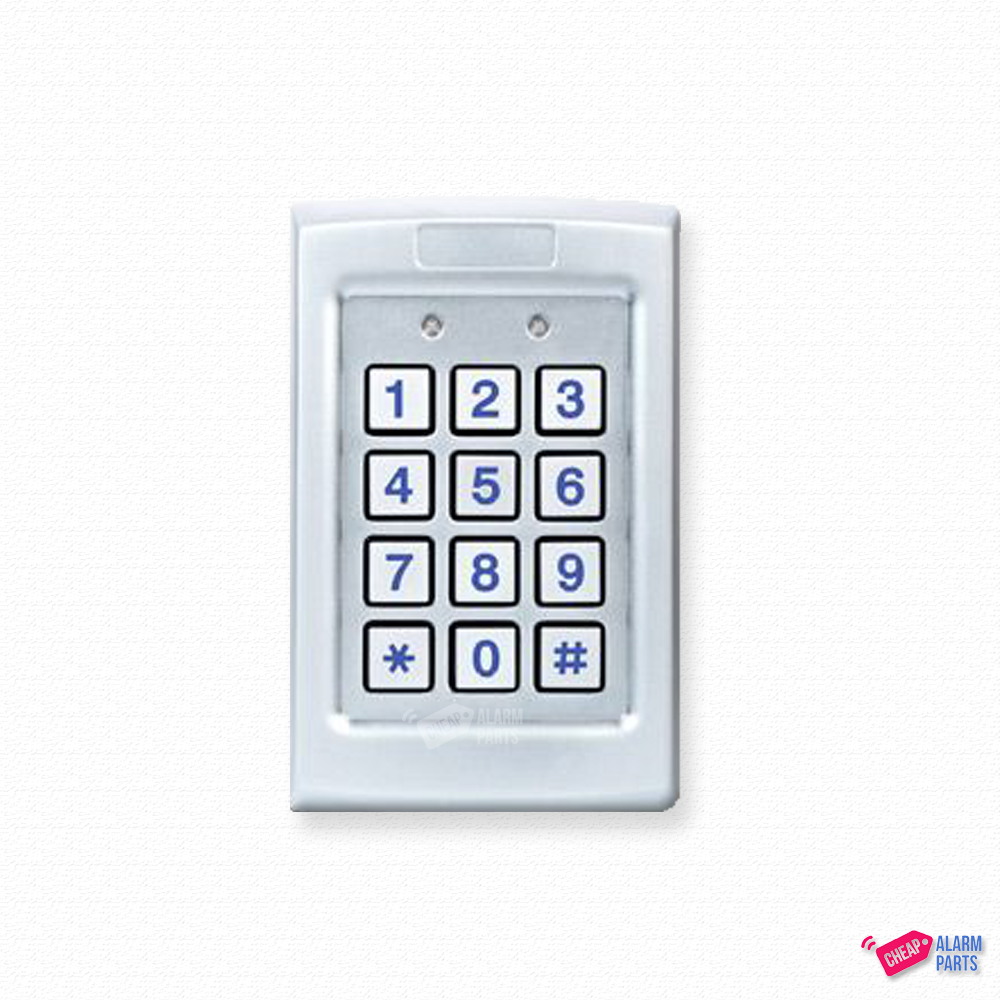

Rosslare Standalone 4x3 Backlit Keypad







Quick Overview:

  • 500 users can have PIN user credentials for granting access
  • Smooth attractive design, with anti-vandal construction
  • Highly-visible blue backlit keypad
  • 3 operational Security Levels can be selected with special PIN codes
  • Optical tamper detection
  • Automatic internal heater prevents key freeze at -20˚C (4˚F).
  • 10 programmable modes for auxiliary input and output (2 Amp Form C Relay)
  • 2 Amp Form C Lock Strike Relay, for fail-safe and fail-secure, with input for REX
  • Supports: Door Ajar, Forced, Shunt, Monitor, and Secure mode
  • Door bell key feature operation (from '*' key), with Rosslare's BL-D40 accessory







The Blurb:

The AC-Q41SB anti-vandal controller has a unique combination of large backlit metal keys and a built-in heater. It offers a higher level of user accessibility in low light areas. AC-Q41SB has an attractive slim profile, free from sharp edges, ideal for installations where style and functionality are highly important. This feature-rich unit offers all weather operation, with flexible programming capabilities including a unique “code search” for simple user management.

Non-volatile memory protects the storage of user database, modes and parameters.





ntal Rule -->

(ACQ41SB)

Specifications:

Electrical Specifications

Operating Voltage Range 12 to 24 VDC, from a regulated power supply
12 to 24 VAC, from a transformer
Input Current (Heater Off) Standby: 70 mA, Maximum: 130 mA, at 12 VDC
(Heater On) Standby: 550 mA, Maximum: 610 mA, at 12 VDC
Relay Outputs Lock Strike: 2A, N.O. and N.C.
Auxiliary: 2A, N.O. and N.C.
Tamper Optical back tamper sensor, O.C. active low 32 mA max sink current
Inputs REX: N.O. Dry Contact
Auxiliary (In/Monitor): N.O. Dry Contact, 10 programmable modes



Operational Specifications

Capacity 500 users, single / dual code each
Keypad 3x4 Blue illuminated Keys for local programming and 4 to 8 digit
PIN codes entry
User Levels Normal, Secure, Master
Security Modes Normal, Bypass, Secure
Audio Visual Interface for BL-D40 (bell, chime, and siren enunciator)
Two tri-color LED indicators, built-in sounder
Design Epoxy potted, fully sealed in a rugged metal enclosure, highly
strong construction, blue backlit metallic keys. Suitable for extremely harsh environments



Enviromental Specifications

Operating Enviroment Water resistant, suitable for outdoor use (IP65)
Operating Temperature -20oC to 60oC (-4oF to 140oF). Built-in heater to prevent key freezing
Operating Humidity 0 to 95% (non-condensing)
RFI Protection > 20 V/m up to 1000 MHz



Physical Specifications

Dimensions (LxWxH) 120 x 76 x 22 mm (4.72 x 3 x 0.85 in.)
Weight 521 g (1.18 lbs)





All images and text are copyright Cheap Alarm Parts.
Please don't copy them and put them on your website. Seriously. It makes us cranky.

SKU ACQ41SB
Brand Rosslare
Shipping Weight 0.8000kg
Shipping Width 0.160m
Shipping Height 0.070m
Shipping Length 0.220m
Shipping Cubic 0.002464000m3
