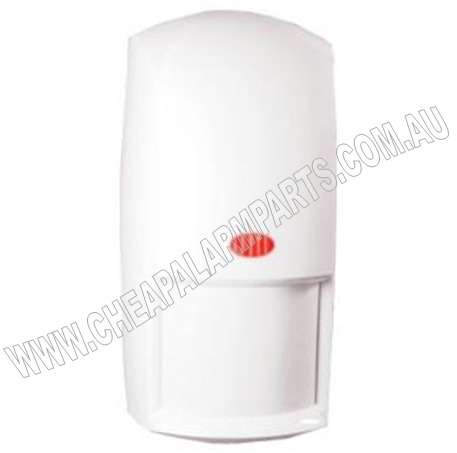

Bosch OD850-F1 Outdoor TriTech PIR/Microwave detector

4.998.155.081

RRP $415.55
$279.82
SAVE $135.73 (33%)
Sold Out - Backorder Available


Calculate Shipping

Bosch OD850-F1 Outdoor TriTech PIR/Microwave detector





Quick Overview:

  • Motion Analyzer II PIR signal processing.
  • Linear travel distance (LTD) microwave signal processing.
  • Two sensitivity levels.
  • Timed relay output adjustable from two sec to 10min.
  • AND/OR mode.




The Blurb:

The OD850 Series TriTech detectors are for use outdoors and in other harsh environments. They use a combination of passive- infrared (PIR) and microwave detection with advanced signal processing.

The detectors process PIR signals with Motion Analyzer II signal processing and microwave signals with Linear Travel Distance (LTD) signal processing. The detectors can distinguish between small, repetitive motions such as tree limbs moving in the wind and the more purposeful motions of intruders. These advanced processing techniques and the detectors' mechanical design combine to provide superior performance in a wide range of weather conditions.



Specifications:

Dimensions: 16.5 cm x 8.25 cm x 6.35 cm (6.5 in. x 3.25 in. x 2.5 in.)
Properties: Weather and vandal resistant
Weight: 1.4 oz (40 g)
IP Rating: 54
Relative Humidity: 0% to 95% non-condensing
Temperature: -35°C to +54°C (-31°F to +130°F)
Tamper: Normally-closed (with cover on) contacts rated 125 mA maximum, 25 VDC maximum
Current: 62 mA maximum
Input Power: 10 VDC to 15 VDC at 22 mA standby.




All images and text are copyright Cheap Alarm Parts.
Please don't copy them and put them on your website. Seriously. It makes us cranky.

(OD850-F1)

SKU OD850-F1
Brand Bosch
Shipping Weight 0.3000kg
Shipping Width 0.120m
Shipping Height 0.070m
Shipping Length 0.240m
Shipping Cubic 0.002016000m3
