$193.64
In Stock


Calculate Shipping

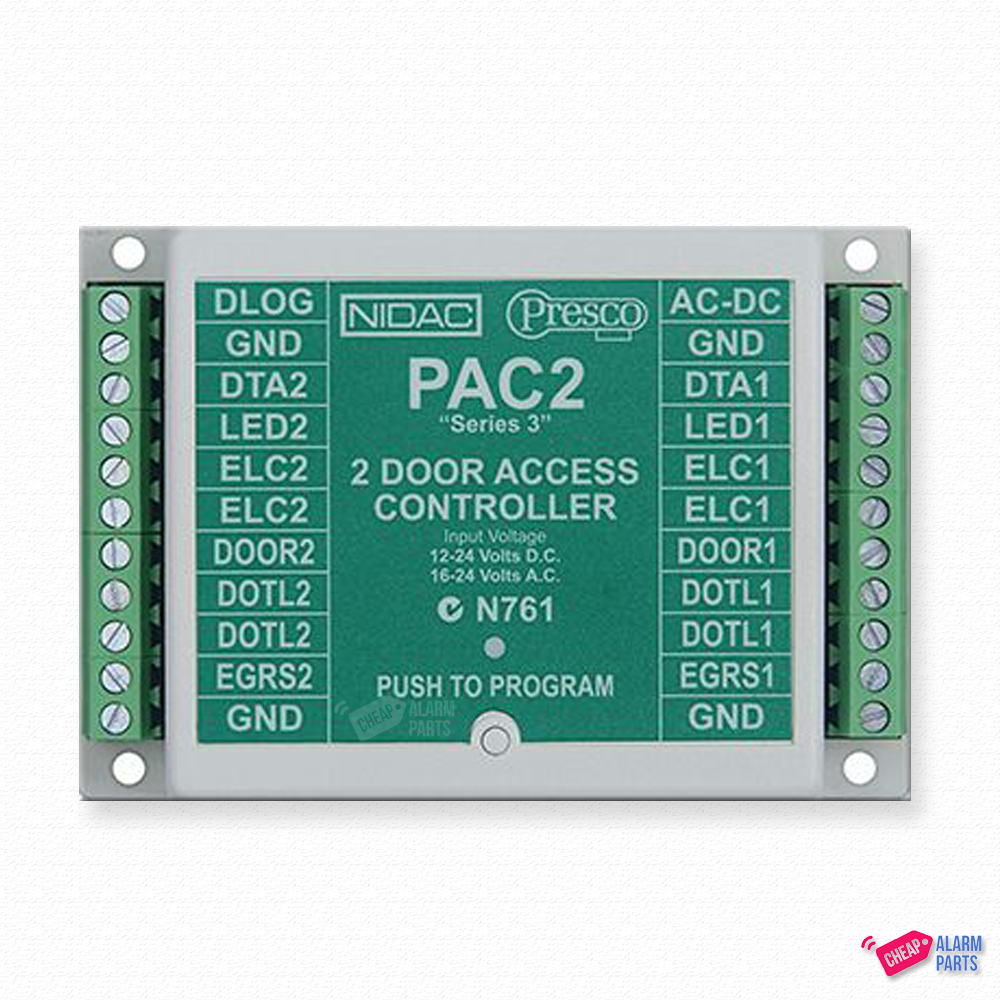

Nidac PAC2 - 2 Door Controller





Quick Overview:

  • Series 3 600 User two door controller
  • Block load users
  • 12-24vdc or 16-24vac
  • 1 min lock out after 5 failed coade attempts




The Blurb:

The PAC (Presco™ Access Controller) Door access controllers utilise proven microprocessor technology to operate an electric door locking device.Together with a Presco™ encoder, or other devices with the addition of a Presco™ Interface Module model PIM. The PAC offers affordable access control to restricted areas for up to 400 users.

With the Presco system the door controller and reader are separated, allowing the controller to do the code processing in a remote protected environment. The code is transmitted from the reader using only two wires, making installation simple and cost effective. The door controller and reader can be separated by up to 1 kilometer using low cost 4 core non-shielded cable!





Features:

  • 12-24 Volt D.C. or 16-24 Volt A.C. operation.
  • 800 Users.
  • Controls 2 doors.
  • Split system ensures maximum security.
  • Support for bulk entry of users.
  • Multiple configurations of the DTA inputs:
  • Dedicated DTA input per door control.
  • One DTA input to control both doors.
  • Both DTA inputs to control Door 1 only.
  • Two Heavy duty 5 Amp relay contacts for lock control.
  • Support for Fail Safe and Fail Secure locking schemes.
  • Two 1 Amp N.O. relay contacts for DOTL and Door Forced alarm outputs.
  • Automatic door Re-lock function.
  • Programmable EGRESS inputs:
  • Momentary release for door output.
  • Hold release for door output.
  • Backward compatibility feature for use with the PACDL Datalogger.
  • 10 year data memory retention, non-volatile memory.
  • 36 month manufacturer’s warranty.




Specifications:

Dimensions 104mm x 72mm x 27mm
Operating Voltage 11 - 30 Volts D.C.
14 - 28 Volts A.C.
Operating Current 200 mA. D.C. max
240 mA. A.C. max
Operating Temperature 0°C to 70°C
ELC Contacts 30 Volts, 5 Amp A.C./D.C.
Single Pole Single Throw
Programmable: N.O. or N.C.
DOTL Contacts 30 Volts, 1 Amp , N.O.
Single Pole Single Throw
Weight 150g







***Please Note: We don't offer tech support for this product.***





All images and text are copyright Cheap Alarm Parts.
Please don't copy them and put them on your website. Seriously. It makes us cranky.

(PAC2)

SKU PAC2
Brand Nidac
Shipping Weight 0.4000kg
Shipping Width 0.160m
Shipping Height 0.070m
Shipping Length 0.220m
Shipping Cubic 0.002464000m3
