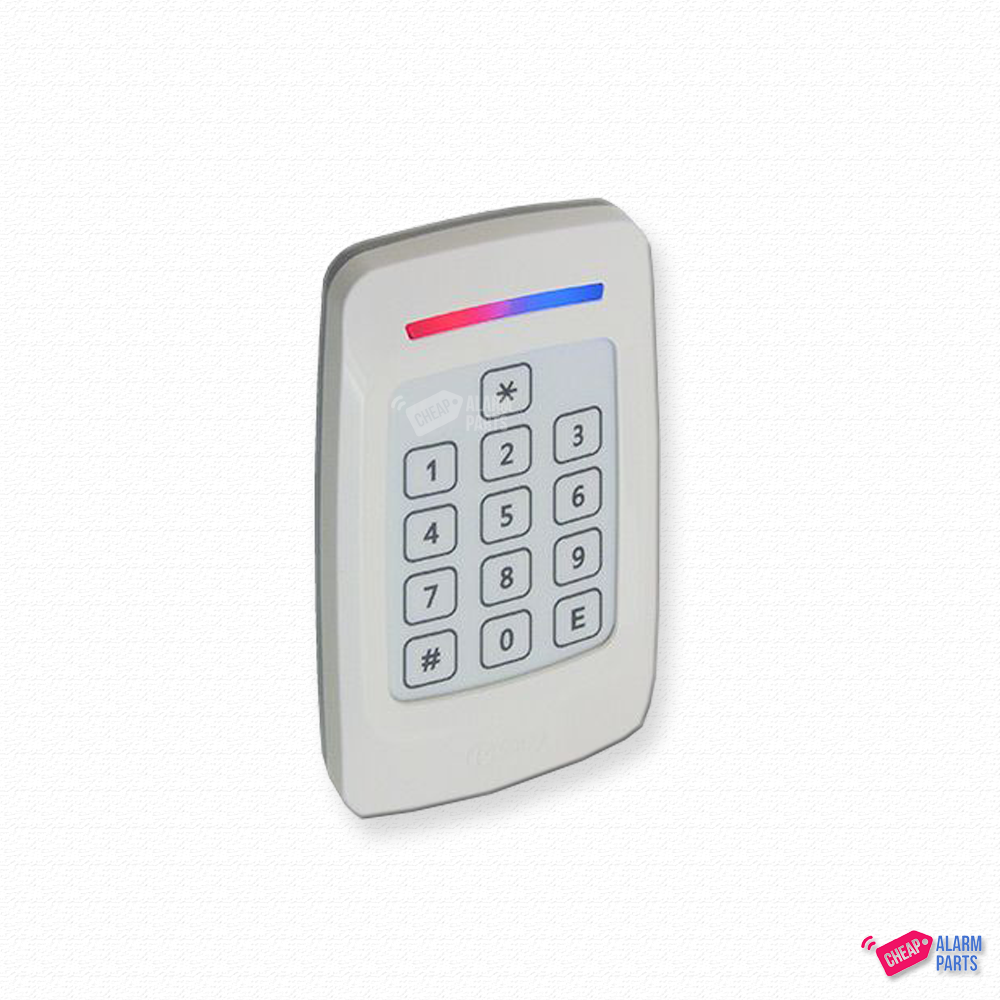

Nidac PSC16 keypad - Non Weather Keypad/Prox Reader



Quick Overview:

• Outputs Presco™ and Wiegand format data
• Auto senses output type required via white wire connection
• Read range of up to 20cm
• Compatible with Presco™ PAC access controllers and all other Presco™ decoders, the entire system uses low cost non-shielded cable and keypads can be up to 1 kilometer from the door controller (power supply and cable dependent)
• Compatible with industry standard 26bit Wiegand systems, fully configurable for other systems with up to 64 bits of data from the keypad and custom proximity cards and tags are available for other wiegand formats
• Over 19,000,000 possible code combinations when used with Presco™ PAC
• Audible and visual confirmation of all actions
• Designed and manufactured in Australia
• 36 month manufacturer’s warranty



The Blurb:

PSK16 Indoor Keypad

The Presco™ PSC16 Proximity Reader is an advanced, self contained RFID (Radio Frequency IDentification) contactless reader. It is capable of interfacing to either a Wiegand input control panel or to Nidac’s range of Presco™ PAC decoders

When a PSR16 is coupled with any PAC series door access controller you get the benefits of a secure door access control solution with all of the features of the Presco™ system.



Specifications:

Operating Voltage	8 to 15 Volts D.C.
Operating Current	150 mA. Max
Operating Temperature	0°C to 50°C
Read Range	Up to 20cm (8”)
Excitation Frequency	125 ± 5 kHz
Wiegand Output	Pulse width: 50µs Pulse separation: 2ms
Dimensions	126mm x 80mm x 17.5mm
Weight	145g



***Please Note: We don't offer tech support for this product.***
