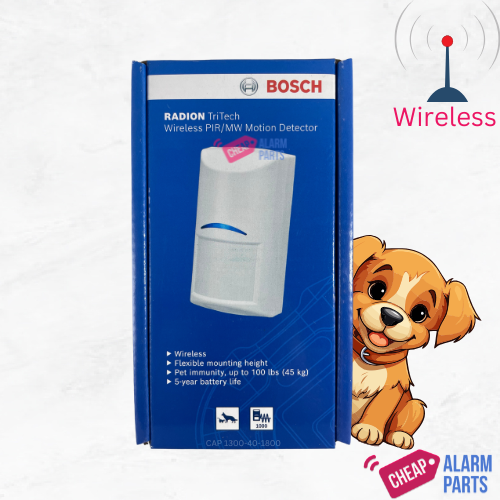

Bosch RFDL-11 Radion Wireless TriTech - Pet Proof

F.01U.253.614

$204.21
In Stock


Calculate Shipping

Bosch Radion Wireless TriTech - Pet Proof RFDL-11





Quick Overview:

  • 11m x 11m (35ft x 35ft) coverage.
  • Pet Immunity up to 45kg (100lb).
  • Available from Cheap Alarm Parts.
  • Includes battery life extension feature.
  • Draft and Insect immune.
  • Sepervised dor low-battery, cover-tamper, and removal from mounting surface tamper conditions.
  • Operational up to 5 years using 4 user replaceable AA Alkaline Batteries.




The Blurb:

RADION wireless from Bosch provides the range, scalability and exceptional battery life required to ensure reliable performance and superior quality. Advanced diagnostics and multiple device enrollment options make installation and maintenance simple and cost effective. With a complete line of peripherals, RADION provides the flexibility for virtually any application requirement.





Specifications:

  • Pet Immunity: The detector is able to distinguish between signals caused by humans and signals caused by pets such as a dog up to 45kg (100lb) or two dogs at 27kg (60lb) or up to ten cats. This provides immunity to false alarms while maintaining proper catch performance of human targets.
  • Draft and Insect Immunity: The sealed optical chamber provides immunity to drafts and insects.
  • Temperature Compensation: The sensor adjusts its sensitivity maintain consistent catch performance at critical temperatures.
  • Battery Life Extension feature (PIR and TriTech): In the normal operating mode, an alarm can be transmitted only after three (3) minutes have passed since the previous alarm restoral. This 3 minute lockout time reduces unnecessary RF transmissions in high traffic areas, thereby extending battery life.




Compatibity:

  • RF3212E Receiver
  • Radion SD12 bus compatible receiver
  • Solution Ultima 880
  • Solution 16i
  • Solution 16Plus
  • Solution 64
  • Solution 144
  • Solution 6000
  • Solution 3000




Specifications:

Dimensions: 138 mm x 72 mm x 64 mm (5.5 in x 2.8 in x 2.5 in)
Internal Coverage Pointability: Vertical: -4゚ to -10゚
Alarm Indicator: Blue LED for TriTech alarms / Green LED for microwave detection / Red LED for PIR detection
Sensitivity Selection: Field selectable for standard or intermediate sensitivity.
Voltage: Four AA Alkaline batteries, 1.5VDC (1.5 VDC x 4 batteries = 6VDC total)
Battery life: Up to 5 years
Temperature: Functional range: -10゚C to +49゚ (+14゚F to +120゚F) / UL only: 0゚C to +49゚C (+32゚F to +120゚F) / EN 50130-5 Class II only: -10゚C to 40゚C (+14゚F to +104゚F
Environment: Complies with EN50130-5 Class II
Relative Humidity: Up to 93% non-condensing
Cover and Wall Tamper Switch: Transmits a tamper switch signal when the unit is removed from its base, or the mounting surface.
Frequency: 433.42 MHz
Use: Intended for indoor use.




Downloads:

pdf.png Wireless TriTech Data Sheet (574 KB)
pdf.png Wireless TriTech Installation Guide (1.3 MB)







Accessories:

Bosch Universal Ceiling Bracket ($8.10)
