$219.31
In Stock


Calculate Shipping

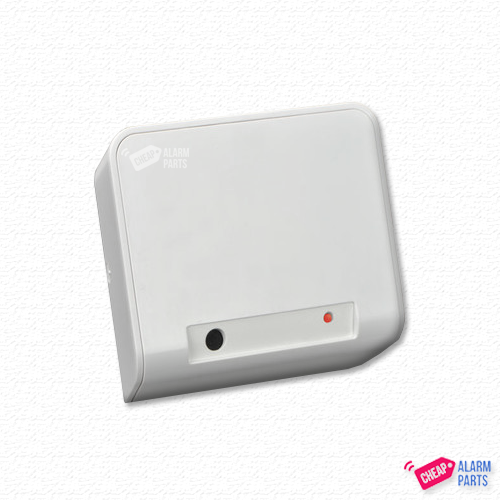

Radion Wireless Glass Break RFGB





Quick Overview:

  • Dual frequency acoustic based detection technology.
  • Sliding, self-locking enclosure for ease of installation.
  • Available from Cheap Alarm Parts.
  • Operational up to 5 years using a single user replaceable CR123A lithium battery.
  • Supervised for low-battery, cover-tamper, and removal from mounting surface tamper conditions.




The Blurb:

RADION glassbreak is a wireless sensor that detects breaking glass. It is equipped with a tamper switch and factory preset glass break sensitivity settings providing flexible configuration to maximize false alarm immunity and catch performance in any environment.

RADION wireless from Bosch provides the range, scalability and exceptional battery life required to ensure reliable performance and superior quality. Advanced diagnostics and multiple device enrollment options make installation and maintenance simple and cost effective. With a complete line of peripherals, RADION provides the flexibility for virtually any application requirement.





Specifications:

  • Glass Break Sensitivity: Factory-set sensitivity levels allow the detector to suit any environment.
  • Tamper Switches: The glassbreak has a wall and cover tamper switch that transmits a tamper signal when someone removes the device from its base, or pulls it away from the wall.
  • Self-locking Enclosure: The sliding self-locking enclosure has an integrated bubble level to make installation easier.




Compatibility:

  • RF3212E Receiver
  • Radion SD12 bus compatible receiver
  • Solution Ultima 880
  • Solution 16i
  • Solution 16Plus
  • Solution 64
  • Solution 144
  • Solution 6000
  • Solution 2000
  • Solution 3000




Specifications:

Dimensions: 101.42 mm x 112.90 mm x 35 mm (3.99 in x 4.44 in x 1.38 in)
Voltage: 3 VDC
Battery type: One CR123A Lithium battery
Battery life: Up to 5 years
Microphone: Omni-directional 360 ゚electret
Minimum distance from glass: 1.2 m (4 ft)
Minimum pane size for all types of glass: 1.2 m (4 ft)
Temperature: Functional range: -10゚C to +49゚ (+14゚F to +120゚F) / UL only: 0゚C to +49゚C (+32゚F to +120゚F) / EN 50130-5 Class II only: -10゚C to 40゚C (+14゚F to +104゚F
Environment: Complies with EN50130-5 Class II
Relative humidity: Up to 93% non-condensing
Wall and cover tamper switch: Transmits a tamper switch signal when the unit is removed from its base, or the unit is pulled away from the mounting surface.
Frequency: 433.42 MHz
Use: Intended for indoor use.




Downloads:

pdf.png Glass Break Data Sheet (266kb)
pdf.png Glass Break Installation Guide (374kb)
