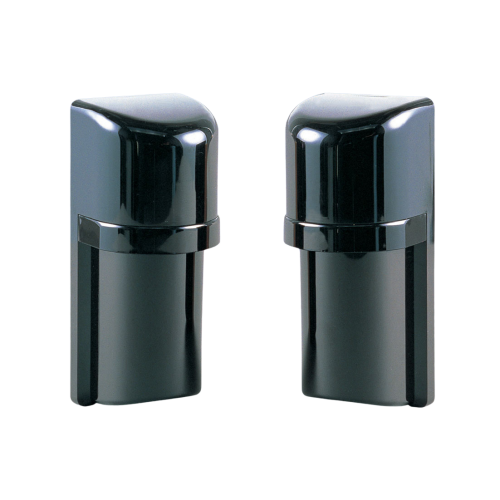

PB-30TK Takex 30m Outdoor/Indoor Beam

$265.00

In Stock

Calculate Shipping

Flat Rate Shipping - $14.95
Flat Rate Shipping

Specifications
Type	Twin Beam
Detection system	Simultaneous breaking of 2 beams
Infrared beam	LED pulsed beam, Double modulation
Detection distance	Outdoor 100' (30m) or less Indoor 200' (60m) or less
Max. arrival distance	Outdoor 1000' (300m) or less Indoor 1000' (300m) or less
Frequency Selection	Single Channel
Response time	50msec. to 700msec. (Variable at pot)
Supply voltage	10V to 30VDC (Non-polarity)
Current consumption	53mA or less
Alarm output	Dry contact relay output form C Contact action : Interruption time + delay time (1 to 3 sec.) Contact capacity : 30V AC/DC, 0.5A or less
Tamper output	Dry contact relay N/C Action: Activated when cover is detached Contact capacity: 30V AC/DC, 0.5A or less
LED indicator	Red LED (Receiver): ・ON: when an alarm is initiated.
Functions	Monitor jack output, AGC circuit, Frost proof cover
Mounting position	Indoor / Outdoor
Wiring	Terminals
Weight	Transmitter: 13.3oz (380g) Receiver: 14oz (400g)
Appearance	PC resin (wine red)

Environmental Specification
Ambient temperature	-13°F to +140°F (-25°C to +60°C)
IP Rating	IP54

(PB30TK)

SKU	PB30TK
Shipping Width	0.200m
Shipping Height	0.200m
Shipping Length	0.200m
Shipping Cubic	0.008000000m3
