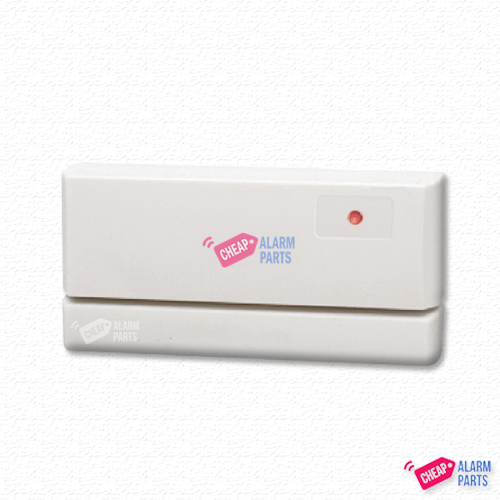

Bosch Break Glass with Magnetic Contact



Quick Overview:

• Microprocessor-based SAT.
• Available from Cheap Alarm Parts.
• Automatic environmental test circuitry.
• Built-in door or window contact.



The Blurb:

The DS1109i Detector uses microprocessor-based sound analysis technology (SAT) to listen for the specific frequencies associated with breaking glass. It can be used to detect breakage of plate, tempered, laminated and wired glass types. A built-in environmental test feature alerts the installer of false alarm hazards in harsh environments. It is specially designed to mount on door or window frames. A builtin magnetic contact allows monitoring of a door or window opening.



All images and text are copyright Cheap Alarm Parts.



Specifications:

Current:	21 mA nominal at 12 VDC
Voltage:	9 VDC to 15 VDC
Dimensions:	3.2 cm x 9.5 cm x 2.3 cm (1.25 in. x 3.75 in. x 0.88 in.)
Material:	High impact ABS plastic enclosure
Alarm Output:	Normally-closed reed relay rated at 3.5 W, 125 mA at 28 VDC for resistive loads.
Tamper Output:	Normally-closed cover activated tamper switch with separate terminals. Contacts rated at 28 VDC, 125 mA maximum.
Temperature:	-29°C to +49°C (-20°F to +120°F)
(RFI) Immunity:	No alarm or setup on critical frequencies in the range from 26 MHz to 950 MHz at 50 V/m
