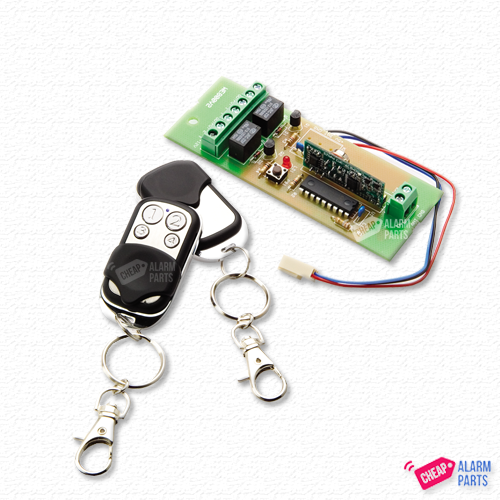

Bosch WE800EV2KIT On/Off Kit with 2x Metal Style Remotes
WE800EV2 RF Arming Kit
RF Arming Kit for Solution 8XX / 2000 / 3000 Series Panels
The Blurb
The WE800EV2 RF Arming Kit provides on/off control for Solution 8XX and 2000 / 3000 / 4000 series alarm panels. It also supports control of up to two external devices via onboard relays, such as a roller door or gate output.
The system uses code hopping RF security with a superheterodyne receiver for improved reliability and reduced interference.
Key Features
- Code hopping RF security
- Two onboard relays
- Supports up to 21 keyfobs
- 433.92 MHz operating frequency
- 4 Button remotes
Receiver Specs
- 5VDC panel supply
- 9–15VDC relay terminal
- 6mA standby / 45mA operating
- SPDT relay (1A @ 12VDC)
- 250 kHz bandwidth
- EEPROM storage (21 fobs max)
Comes with:

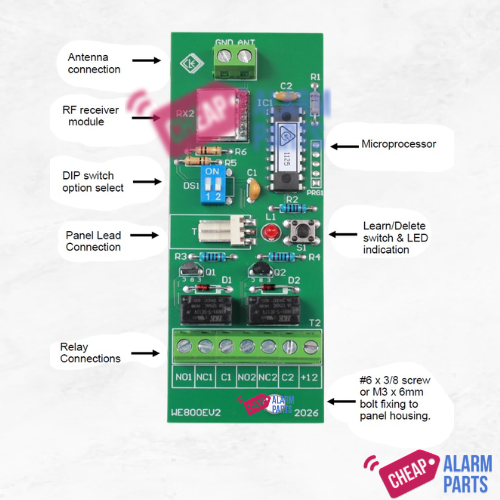

- 1x WE800EV2 Receiver board

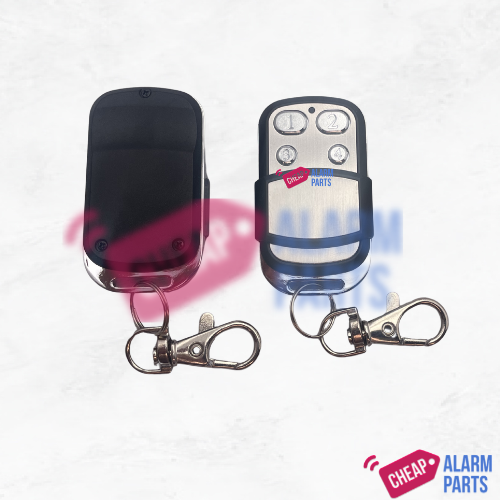

- 2x HCT-4R 4 button remote controls
- 2x Batteries for remotes
- 1x Antenna
- 1x Panel lead connection cable
- 1x Printed instructions.
Operation Features
- On and off functions in Away and Stay modes
- Panic function via button combinations
- DIP 1 disables STAY mode
- DIP 2 reverses button functions
- Relay modes: momentary or toggle
Compatibility
- Solution 844
- Solution 880
- Solution 2000 (On/off only)
- Solution 3000 (On/off only)
- Solution 4000 (On/off only)
- HCT-4 remotes
- HCT-4P remotes
- HCT-4R remotes
Programming (844 & 880 Panels)
Learn remotes:
- Enter master code → 1 → AWAY
- Select user 9–16 → AWAY
- Press STAY
Delete remotes:
- Enter master code → 1 → AWAY
- Select user 9–16 → AWAY
- Press STAY
Source: WE800EV2 RF Arming Kit Instruction Manual :contentReference[oaicite:0]{index=0}
(WE800EV2KIT)
| SKU | WE800EV2KIT |
| Brand | Bosch |
| Shipping Weight | 0.2200kg |
| Shipping Width | 0.220m |
| Shipping Height | 0.070m |
| Shipping Length | 0.160m |
| Shipping Cubic | 0.002464000m3 |
Literally less than ten minutes to install and the
7 March 2022This was so easy to do. First, fit in the space provided and be ready to screw into place and attach the antenna. Then plug into the mainboard. as remotes paired already, simply go to the keypad and enter code as detailed instructions and done. probably less than 15mins to do. if you are experienced, less time. Been using it for over a year and flawless.
