Elsema Penta 433MHz 4ch PCB Transmitter
PCK43304W
Limited Stock, Please call 1300 40 1800 for stock availability.
Calculate Shipping
Flat Rate Shipping - $14.95
Flat Rate Shipping

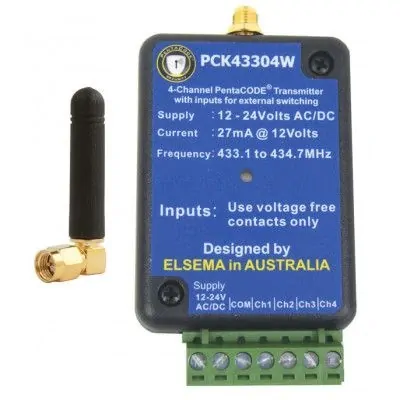

Elsema PCK43304W - 4 Channel 433MHz PentaCODE Transmitter
Turn wired buttons and relay contacts into wireless control.
Quick Overview
| Product type | Fixed-installation wireless transmitter |
|---|---|
| Inputs | Four optically isolated, voltage-free normally open contact inputs |
| Power supply | 12-24V AC or DC |
| Compatible receivers | Elsema PCR433 Penta series |
| Coding | 12-way DIP-switch or encrypted coding |
The Blurb
Need a button or relay at one location to operate equipment somewhere else? The Elsema PCK43304W sends contact signals wirelessly to a compatible Penta receiver, helping avoid a long control-cable run.
Connect push buttons, switches or suitable dry-contact outputs from an intercom, alarm panel or PLC. Its four channels let you send different commands, with support for multiple inputs being active simultaneously.
Key Features
- Four input channels: connect separate buttons or contact signals.
- Frequency hopping: helps reduce interference.
- Flexible security: DIP-switch coding or over 17 billion encrypted code combinations.
- Practical connections: pluggable screw terminals and an input-activity LED.
Technical Specifications
| Frequency band | 433.100-434.700MHz |
|---|---|
| Standby current | 6µA at 12V DC |
| Transmit current | 27mA |
| Dimensions | 70 × 55 × 25mm |
| Maximum range | Up to 500m with an ANT433M antenna under suitable line-of-sight conditions |
What's Included
1 × Elsema PCK43304W transmitter with a micro antenna for short-range use. A compatible receiver and suitable power supply are required separately.
Installation Notes
Inputs accept voltage-free contact closures only. Connect the power supply to the dedicated supply terminals. The included micro antenna is intended for shorter distances; actual range depends on antennas, obstacles and installation conditions.
Need help choosing the receiver? Tell Cheap Alarm Parts what you want to control and how many separate functions you need.
Listing Provenance: Cheap Alarm Parts
(PCK43304W)
| SKU | PCK43304W |
| Shipping Weight | 0.3000kg |
| Shipping Width | 0.100m |
| Shipping Height | 0.070m |
| Shipping Length | 0.150m |
| Shipping Cubic | 0.001050000m3 |
