$178.98
In Stock


The CM710B adds 4 outputs to compatible control panels. Outputs can be used to operate LEDs, garage doors, door strikes etc.

Calculate Shipping



Flat Rate Shipping - $12.95
Flat Rate Shipping

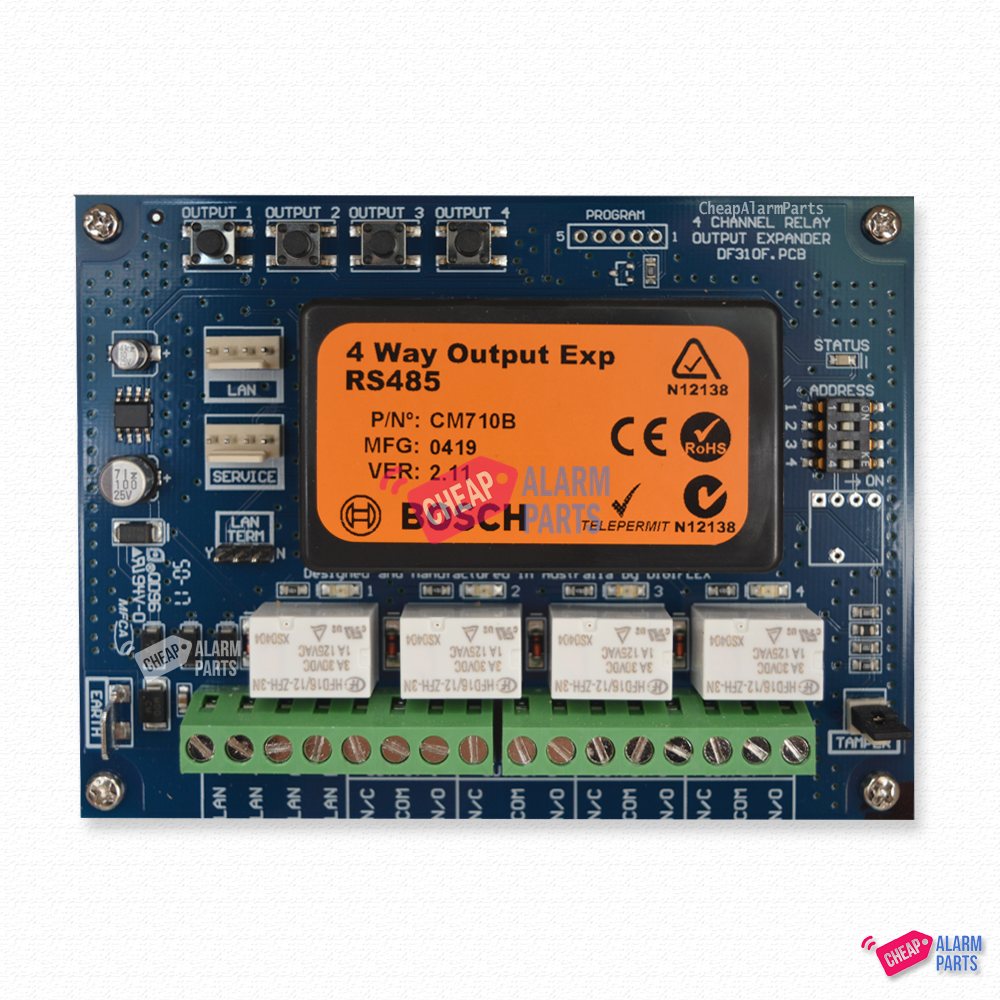

CM710B 4 WAY LAN Relay Output Expander Module for Solution 144 & 6000





Quick Overview:

  • Adds an additional 4 outputs to compatible alarm panels
  • 4x Changeover contacts onboard
  • Test press buttons
  • Fully programmable outputs
  • Mounts as 1 module space in Solution series cabinets.
  • Available from Cheap Alarm Parts.




The Blurb:

The CM710B can be added to your compatible control panel to increase the number of programmable outputs available on the system. Outputs can be used to operate LED indicators, garage doors, light's, pumps, door strikes etc. Up to 8 modules can be added to a Solution 6000 system.





Compatibility:

  • Solution 6000
  • Solution 144
  • Solution 16i




Specifications:

Voltage: 10.5 to 14 V D C
Current: 30m A standby, 200m A MAX (allrelays and LEDs operated)
Outputs: 4 x Form C Relay outputs - contacts rated at 24VD C at 2A MAX
Cable: Max total LAN length using multi stranded security cable = 300m Max total LAN length using 2 pair twisted shielded data cable (Belden 8723) = 1500m
Temperature: 0 to 55 ° C
Humidity: 5 % to 85 % at 30 ° C non condensing




All images and text are copyright Cheap Alarm Parts.
Please don't copy them and put them on your website. Seriously. It makes us cranky.

(CM710B)

SKU CM710B
Brand Bosch
Shipping Weight 0.0970kg
Shipping Width 0.100m
Shipping Height 0.300m
Shipping Length 0.160m
