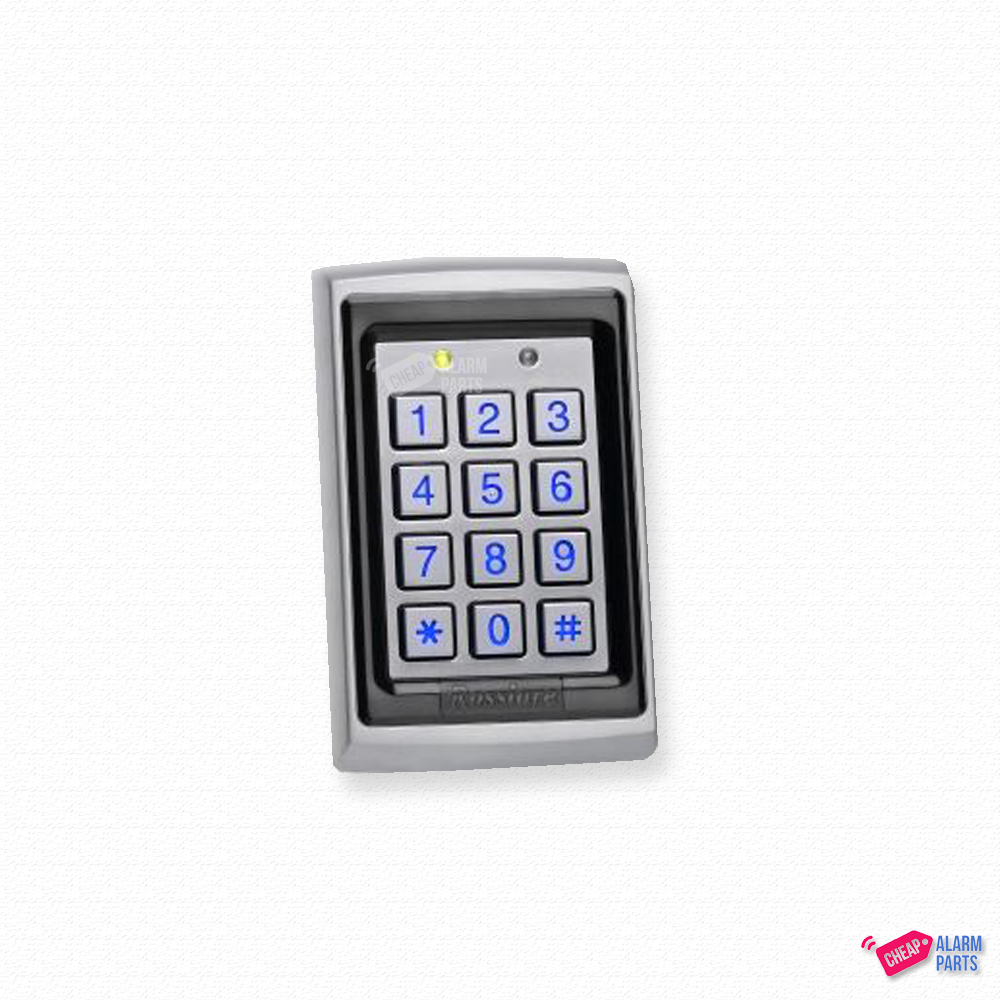

Rosslare Standalone 4x3 Backlit Keypad and EM Format Reader

EM Format Reader

In Stock

Calculate Shipping

International Standard NZ - $0.00
International Standard NZ
Flat Rate Shipping - $12.95
Flat Rate Shipping

Rosslare Standalone 4x3 Backlit Keypad





Quick Overview:

  • Built-in 125 kHz RFID card reader
  • 500 users can have PIN and / or RFID
    credentials to grant access.
  • Smooth attractive design, with anti-vandal
  • Highly-visible blue backlit keypad.
  • 3 operational Security Levels can be selected
    with special PIN codes.
  • Supports up to 8-digit PIN codes, with timed
    wrong code lockout after 3 wrong attempts.
  • 2 tri-colored LEDs and integral sounder for
    programming and operation.
  • Wide range of low voltage AC/DC power

Professional Grade Features:

  • Optical tamper detection output.
  • Automatic internal heater prevents key freeze at
    -20°C (4°F).
  • 10 programmable modes for auxiliary input and
    output (2 Amp Form C Relay.)
  • 2 Amp Form C Lock Strike Relay, for fail-safe and
    fail-secure, with input for REX.
  • Supports: Door Ajar, Forced, Shunt, Monitor, and
    Secure mode.
  • Door bell key feature operation (from '*' bell
    key), with Rosslare's accessory BLD40.


The Blurb:

The AC-Q42SB anti-vandal controller has a unique combination of large backlit metal keys and a builtin
heater. It offers a higher level of user accessibility in low light areas. AC-Q42SB has an attractive slim profile, free from sharp edges, ideal for installations where style, strength and functionality are highly important.
This feature-rich unit offers all weather operation, with flexible programming capabilities including a
unique “code search” for simple user management. Non-volatile memory protects the storage of user
database, modes and parameters.





Electrical Specifications

Operating Voltage Range 12 to 24VDC, from a regulated power supply
16 to 24VAC, from a transformer
Input Current (Heater Off) Standby: 85mA, Maximum: 145mA, at 12VDC
(Heater On) Standby: 565mA, Maximum: 625mA, at 12VDC
Relay Outputs Lock Strike: 2A, N.O. and N.C.
Auxiliary: 2A, N.O. and N.C.
Tamper Optical back tamper sensor, O.C. active low 32mA max sink current
Inputs REX: N.O. Dry Contact
Auxiliary (In/Monitor): N.O. Dry Contact. 10 Programmable modes
Proximity Card Reader Maximum read range*: 65mm (2.5")
Modulation: ASK at 125 kHz
Compatible cards: All 26-Bit EM Cards


Operational Specifications

Capacity 500 Users, single / dual code each
Keypad 3x4 Keys for local programming and 4 to 8 digit PIN codes entry
User Levels Normal, Secure, Master
Security Modes Normal, Bypass, Secure
Audio Visual Interface for BL-D40 (bell, chime and siren enunciator)
Two tri-color LED indicators, built-in sounder
Design Epoxy potted, fully-sealed in a rugged polycarbonate enclosure. Red illuminated rubber keys. Suitable for harsh environments.


Enviromental Specifications

Operating Enviroment Water resistant, suitable for outdoor use (IP65)
Operating Temperature -20oC to 60oC (-4oF to 140oF).
Operating Humidity 0 to 95% (non-condensing)
RFI Protection > 20 V/m up to 1000 MHz


Physical Specifications

Dimensions (LxWxH) 120mm x 76mm x 22mm (4.72" x 3" x 0.85")
Weight 521 (1.18 lbs)



All images and text are copyright Cheap Alarm Parts.
Please don't copy them and put them on your website. Seriously. It makes us cranky.

Brand Rosslare
Shipping Weight 0.6000kg
Shipping Width 0.160m
Shipping Height 0.120m
Shipping Length 0.270m
Shipping Cubic 0.005184000m3
