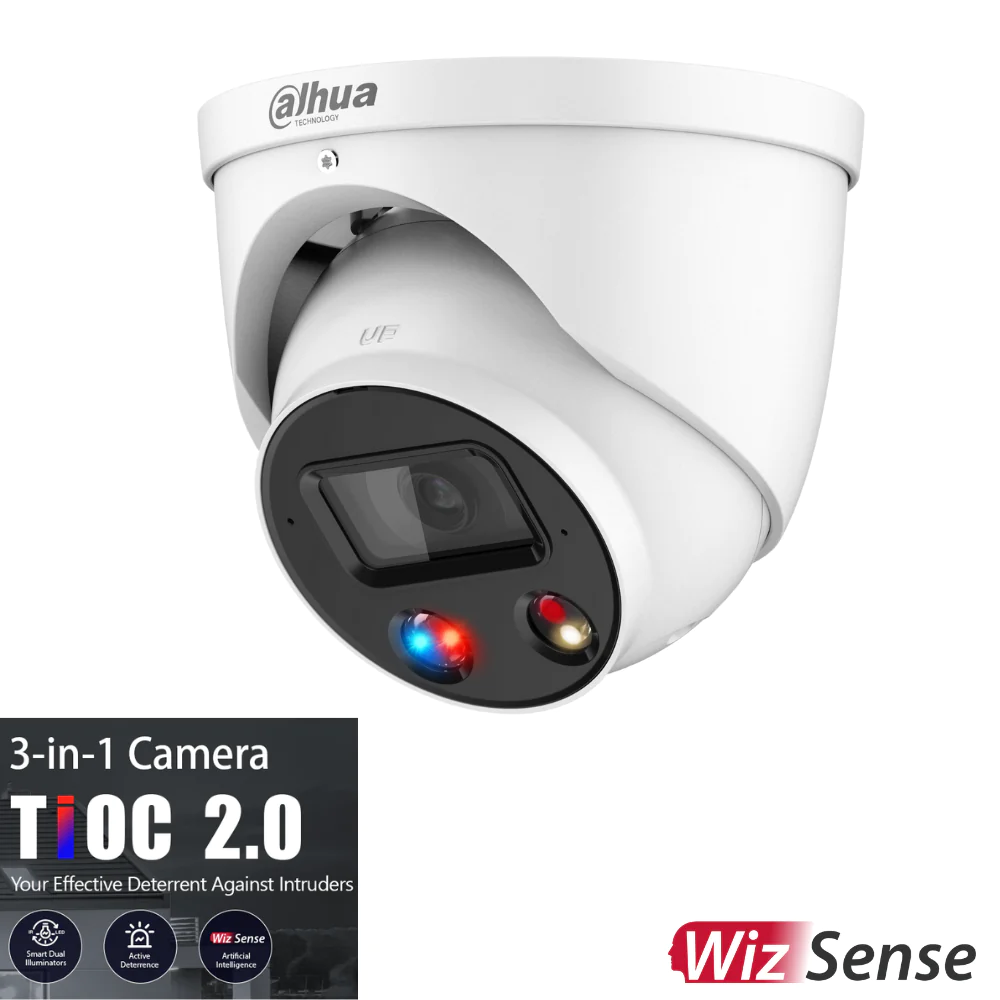

DAHUA 8MP TIOC 2.0 ACTIVE DETERRENCE TURRET FIXED CAMERA
DH-IPC-HDW3849H-AS-PV-ANZ, TioC, TioC Camera
Calculate Shipping
Flat Rate Shipping - $12.95
Flat Rate Shipping
8 MP Smart Dual Illumination Active Deterrence Fixed-focal Eyeball WizSense Network Camera
Quick Overview:
- 8 MP 1/2.8" CMOS image sensor, low luminance, and high definition
- image.
- Outputs max. 8 MP (3840 × 2160)@25/30 fps.
- H.265 codec, high compression rate, ultra-low bit rate.
- Built-in warm light and IR LED; the max. IR illumination distance is 30 m
- and warm light distance is 30 m.
- ROI, SMART H.264+/H.265+, AI H.264/H.265, flexible coding, applicable
- to various bandwidth and storage environments.
- Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable
- to various monitoring scenes.
- Intelligent monitoring: Intrusion, tripwire (the two function support the
- classification and accurate detection of vehicle and human).
- Abnormality detection: Motion detection, privacy masking, scene
- changing, audio detection, no SD card, SD card full, SD card error,
- network disconnection, IP conflict, illegal access, and voltage detection.
- Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 G Micro SD
- card; buit-in dual MICs; 1-ch speaker.
- 12 VDC/PoE power supply.
- IP67 protection.
- Sound and light alarm (red and blue lights).
- SMD 3.0.
- One press arming/disarming through alarm input.
The Blurb:
With advanced deep learning algorithm, Dahua WizSense 3 Series network camera supports intelligent functions, such as perimeter protection and smart motion detection. With starlight technology, this series camera provides a better image effect in the condition of low illuminance.
Functions:
Siren and Light Active Deterrence
Dahua siren and light active deterrence network camera supports the light alarm and voice alarm when perimeter event occurs, to realize the deterrence and effective intervention. The camera is built in multiple voices for selection, and supports customized voice importing.
Smart Dual Illuminators
Dahua Smart Dual Illuminators technology adopts smart algorithm to detect targets. Usually, the IR illuminator is on at night; when the target appears in the monitoring area, the warm light is on, and the camera records the full-color video and information of key events. That is, the camera links snapshot and video with full-color image. When the target is out of the monitoring area, the warm light is off and the IR illuminator is on, which reduces light pollution efficiently.
SMD
With intelligent algorithm, Dahua Smart Motion Detection technology can categorize the targets that trigger motion detection and filter the motion detection alarm triggered by non-concerned targets to realize effective and accurate alarm.
One-tap Disarming
Dahua One-tap Disarming function, which is convenient and easy for operation, is the switch for event linkage. Customers can close and recover event linkage through mobile App, which meets multi-scenarios needs.
Cyber Security
Dahua network cameras employ a series of security technologies, including security authentication and authorization, access control protocols, trusted protection, encrypted transmission and encrypted storage. These technologies improve the camera's defense against external cyber threats and prevent malicious programs from compromising the device.
Protection (IP67, wide voltage):
IP67: The camera passes a series of strict test on dust and soak. It has dust-proof function, and the enclosure can works normal after soaking in 1 m deep water for 30 minutes.
Wide voltage: The camera allows ±30% input voltage tolerance (wide voltage range), and it is widely applied to outdoor environment with instable voltage.
Specifications
Lens Type | Fixed-focal |
Focal Length | 2.8 mm; 3.6 mm |
Field of View | 2.8 mm: Horizontal: 106°× Vertical: 55°× Diagonal: 125° 3.6 mm: Horizontal: 85°× Vertical: 45°× Diagonal: 100° |
IVS (Perimeter Protection) | Tripwire; intrusion (Support the classification and accurate detection of vehicle and human)Tripwire; intrusion |
Smart Codec | Yes |
Resolution | 8M (3840 × 2160); 6M (3072 × 2048); 5M (3072 × 1728/2592 × 1944); 4M (2688 × 1520); 3M (2048 × 1536/2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
Built-in-MIC | Yes |
Power Supply | 12V DC/PoE (802.3af) |
Power Consumption | Basic: 2.9 W (12 VDC); 5.0 W (PoE) Max. (H.265+main stream/IR intensity+warm light on): 7.8 W (12 VDC) 9.6 W (PoE) |
Avaliable Accessories (optional):
PFA137 | Junction Box |
PFB205W | Wall Mount Bracket |
PFA106+PFB220C | Ceiling Mount Bracket |
PFB205W+PFA152-E | Pole Mount Bracket |
PFM321D | 12 VDC 1A Power Adapter |
LR1002-1ET/1EC | Single-port Long Reach Ethernet over Coax Extender |
PFM900-E | Intergrated Mount Tester |
PFM114 | TLC SD Card |
All images and text are copyright Cheap Alarm Parts.
Please don't copy them and put them on your website. Seriously. It makes us cranky.
(DH-IPC-HDW3849H-AS-PV-ANZ)
SKU | DH-IPC-HDW3849H-AS-PV-ANZ |
Brand | TioC |
Shipping Weight | 0.5000kg |
Shipping Width | 0.160m |
Shipping Height | 0.200m |
Shipping Length | 0.270m |
Shipping Cubic | 0.008640000m3 |
