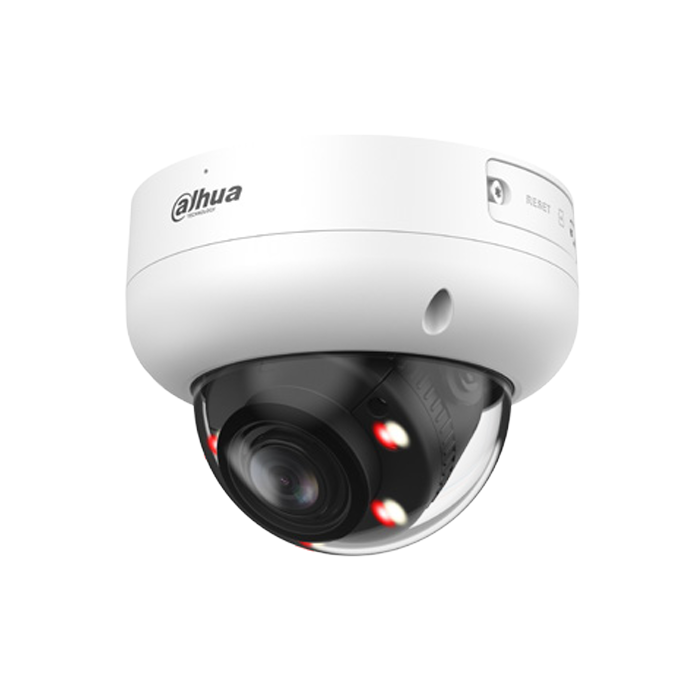

DH-IPC-HDBW3667R-ZAS-IL-ANZ – 6MP Smart Dual Light Vari-focal Dome Network Camera

The DH-IPC-HDBW3667R-ZAS-IL-ANZ is a 6MP WizSense network dome camera featuring Smart Dual Light technology, AI-powered detection, and a motorised vari-focal lens. It delivers high-definition imaging with intelligent human and vehicle classification for reliable surveillance in a wide range of environments.

Key Features

• 6MP resolution (3288 × 1850) with 1/2.7" CMOS image sensor
• Motorised vari-focal lens: 2.7 mm – 13.5 mm
• Smart Dual Light (IR + warm light up to 50 m)
• AI-based perimeter protection (tripwire & intrusion detection)
• Smart Motion Detection (SMD 4.0) with false alarm filtering
• H.265 / Smart H.265+ compression for reduced storage usage
• Wide Dynamic Range (WDR) 120 dB
• Built-in microphone with audio input/output support
• Supports microSD card storage up to 512 GB
• IP67 weatherproof and IK10 vandal resistant housing

AI & Smart Functions

• Human and vehicle classification for intelligent alerts
• AI Scene Self-Adaptation (AI SSA) for automatic image optimisation in changing environments
• AcuPick support for fast target search via compatible systems
• Smart search and event filtering via AI-enabled NVRs

Imaging Performance

• Minimum illumination: 0.007 lux (colour), 0 lux with illuminator on
• Up to 50 m IR and warm light illumination range
• Electronic Image Stabilisation (EIS)
• 3D noise reduction, HLC, BLC, defog support
• Privacy masking: up to 8 areas

Video Specifications

• Max resolution: 6MP (3288 × 1850)
• Frame rate: up to 25/30 fps
• Triple stream support
• Video compression: H.264, H.265, Smart H.264+, Smart H.265+
• Bit rate range: 3 kbps – 16 Mbps

Connectivity & Storage

• RJ-45 Ethernet (10/100 Mbps)
• ONVIF Profile S/G/T/M compatible
• MicroSD support up to 512 GB
• FTP, SFTP, NAS storage options
• Built-in cybersecurity features including encryption and secure boot

Physical & Environmental

• Operating temperature: -30°C to +60°C
• IP67 weatherproof and IK10 vandal resistance
• Power: 12 VDC or PoE (802.3af)
• Power consumption: up to 11.3 W (PoE max)
• Dimensions: 94 mm × Ø122 mm
• Net weight: 560 g

Compliance

• CE-LVD: EN62368-1
• CE-EMC: 2014/30/EU
