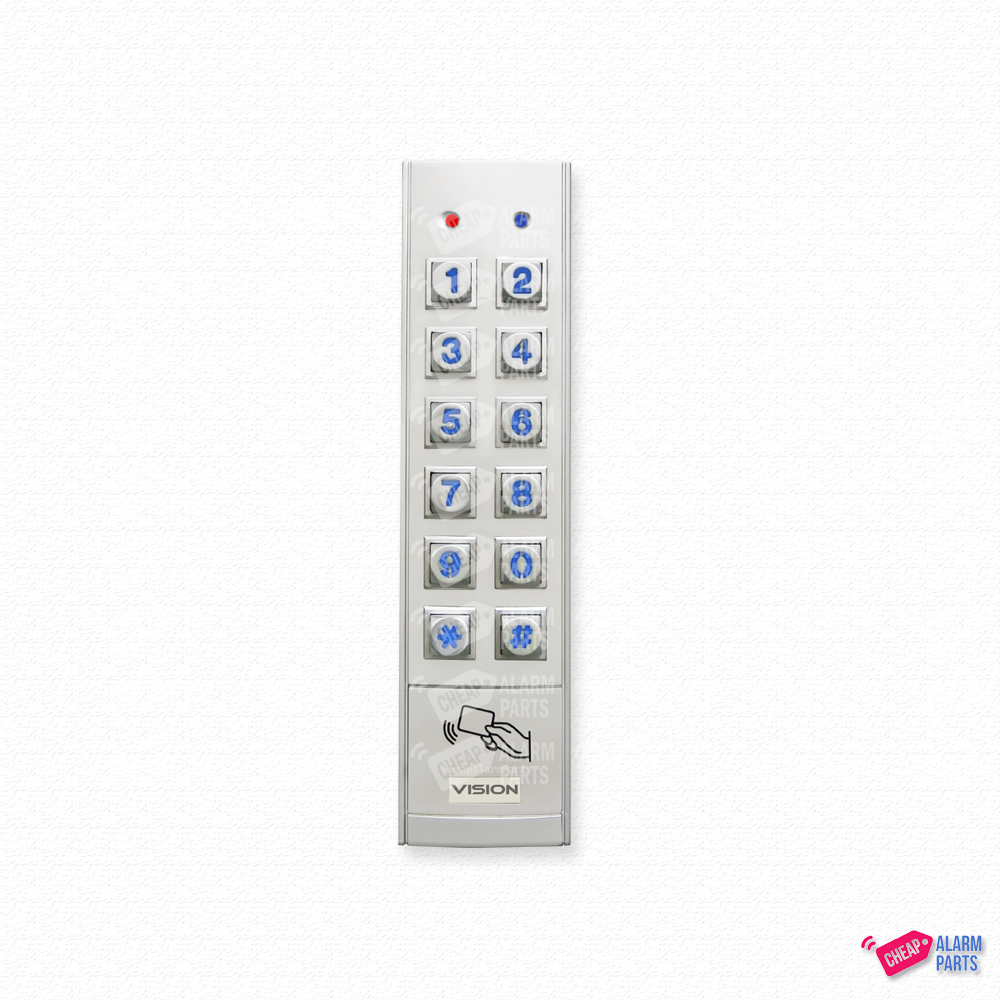

Bosch CP156 External Metal Keypad



Quick Overview:

  • Suitable for Indoor and Outdoor use.
  • Stylish Vandal Redidtant Metal Construction.
  • Weather Resistant to IP67.
  • Durable Satin Chrome Plated Zinc Die-Cast Finish.
  • Blue LED Key Blacklighting.
  • LAN Monitored for Anti Replay & Anti Substitution.
  • Encrypted LAN Communication with Panel.
  • Programmable Egress Input.
  • Programmable Lock Output.
  • Indicators Show Alarm or Door Status.
  • Operates Alarm System, Door Lock or Both.
  • User Access Information Reported and Logged


The Blurb:

The CP156 Keypad provides alarm and or access control functionality when used on selected Vision secutiry control panels. Constructed from satin chrome plated zinc die cast, the CP156 Keypad provides a high level of vandal resistence and is also weather resistant to IP67 making it ideal for external installations.

The CP156 includes red and green indicators which are used to show area or door lock status and the 12 buttons with blue clacklighting make the keypad easy to operate in all lighting conditions.

The CP156 includes an Egress input and a overload protected lock output which can be used to provide a low cost door control solution. These can be sidable via software control if not being used.

The unit connects to the alarm control panel via and encrypted RS485 LAN which also includes anti substitution technology for even higher security.

User access events are stored in the alarm control panel's history log and these events can also be reported to the monitoring station or to any other available reporting destination if required.

Selected control panels provide support for up to 16 keypads per installation and various options for each can be configured via panel programming.



Smart Card Compatibility:

  • PR301 Token
  • PR370 Dual Token
  • PR365 Adhesive Token
  • PR350 ISO Cards.


All images and text are copyright Cheap Alarm Parts.
Please don't copy them and put them on your website. Seriously. It makes us cranky.


Brand Bosch
Shipping Weight 0.8500kg
Shipping Width 0.160m
Shipping Height 0.070m
Shipping Length 0.220m
Shipping Cubic 0.002464000m3
