CM195B Multi Receiver (for Solution 6000)



History:

Discontinued in approx 2025 this device allowed you to wire in up to 3 RFRC-STR type receivers to a single Solution 144/6000 input terminal, thus increasing the range of the system. It's now been replaced with the RF120 and RF121 receivers which are LAN based and can sit anywhere there is a 6000 LAN (such as keypads and expanders). You can have up to 4 RF120 receivers on the same network at the same time.



Quick Overview:

• Provides increased wireless coverage.
• Multi vendor wireless capable.
• Module Status and Receiver status LEDs.
• Separate tamper input.
• Available from Cheap Alarm Parts.



The Blurb:

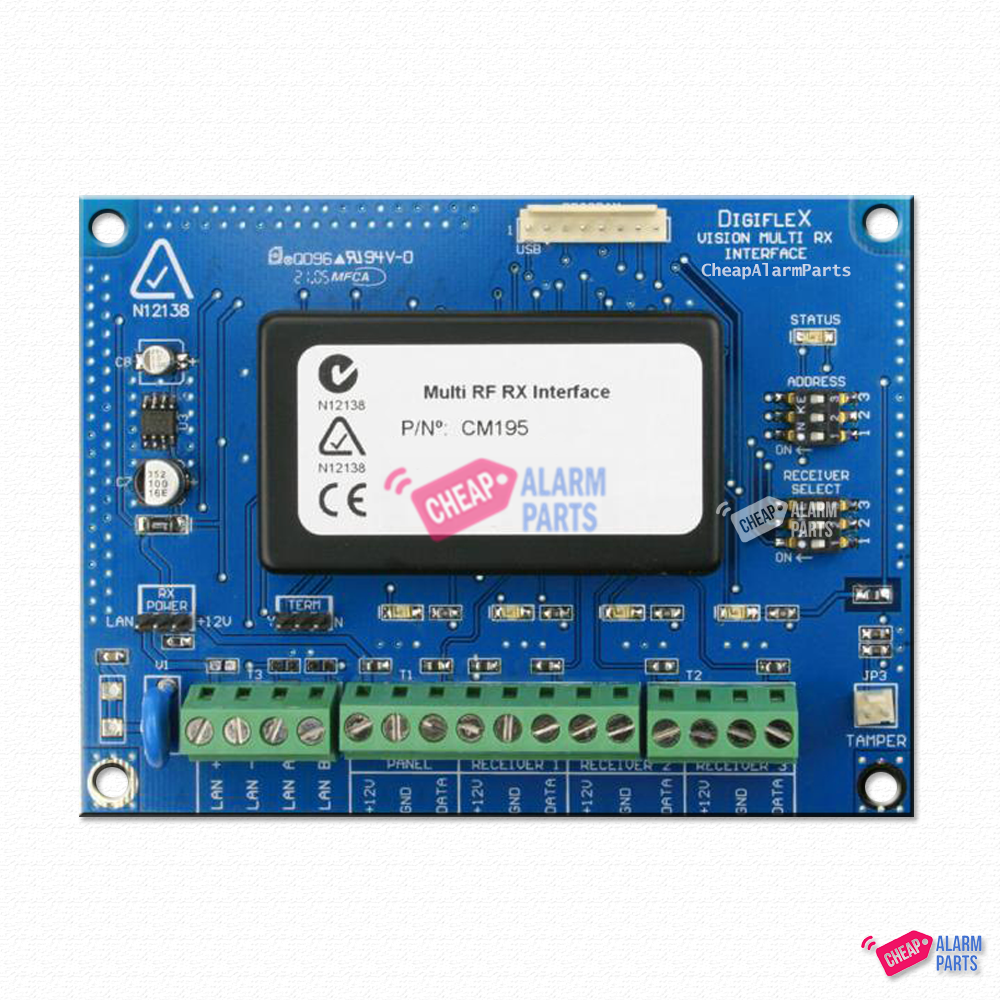

The CM195B Multi RF Receiver Interface allows up to three wireless RF receivers to be connected to the system simultaneously, providing greater coverage in large or RF unfriendly installations.



Compatibility:

• Solution 144
• Solution 6000



Specifications:

Voltage:	10.5 to 14 V D C
Current:	100 m A MAX
Cable:	3 wire connection to control panel INPUT terminal
Temperature:	0 to 55 ° C
Humidity:	5 % to 85 % at 30 ° C non condensing
