$156.49
In Stock


Calculate Shipping



Flat Rate Shipping - $12.95
Flat Rate Shipping

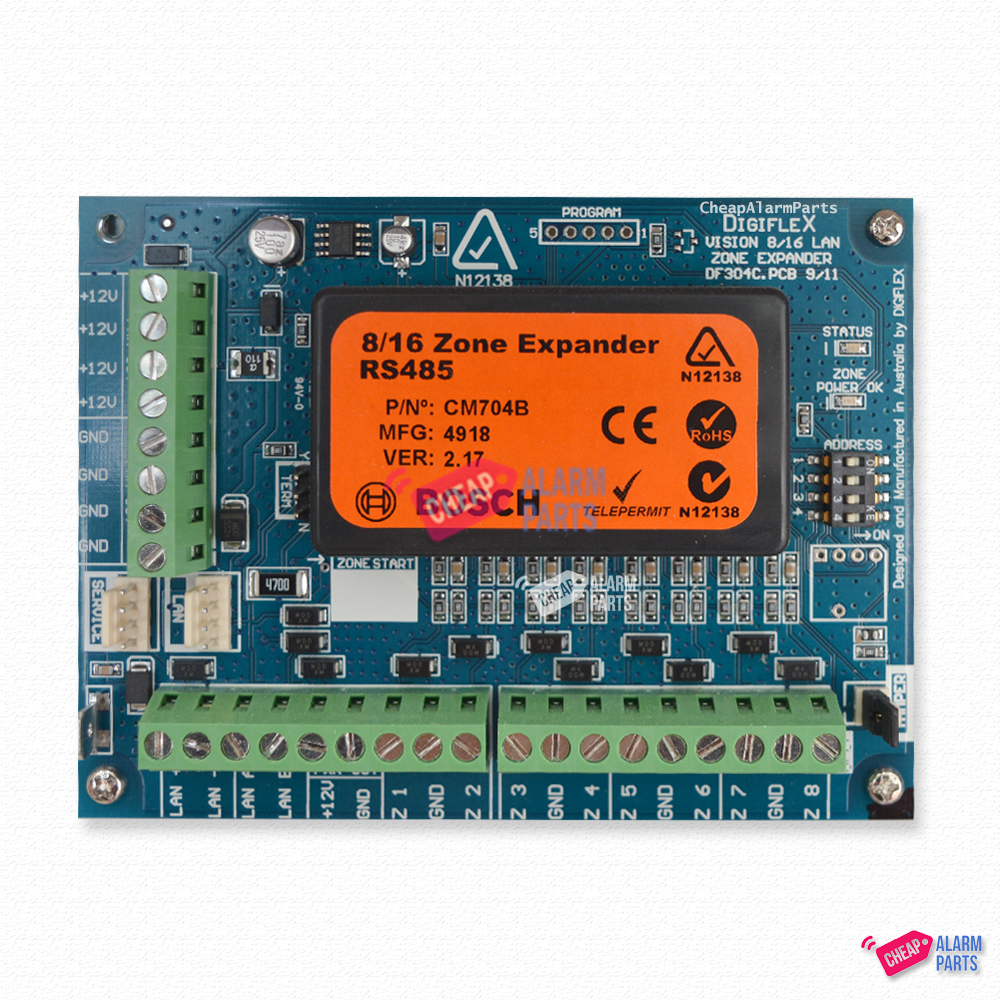

CM704B 8/16 Zone Expander Board PCB Only





Quick Overview:

  • LAN or locally powered.
  • Status and Zone Power LEDs.
  • Service code pad connection.
  • Separate tamper input.
  • Automatic recognition by panel.
  • Available from Cheap Alarm Parts.




The Blurb:

The CM704B zone expansion module allows quick and easy installation of addition physical inputs to the intrusion control panel. Being LAN based the CM704B may be co-located with the intrusion control panel or remotely located.

When used in conjunction with a Solution 144 or 6000, the CM704B allows an additional 8 zones, or 16 zones with the zone doubling. You can have multiple CM704B units connected to the LAN which allows up to 144 zones. A 4 - core cable is all that is needed to relay data back to the main alarm panel which greatly simplifes cabling.





Compatibility:

  • Solution 6000
  • Solution 144




Specifications:

Voltage: 10.5 to 14 V D C
Current: 100 m A MAX
Temperature: 0 to 55 ° C
Humidity: 5 % to 85 % at 30 ° C non condensing




All images and text are copyright Cheap Alarm Parts.
Please don't copy them and put them on your website. Seriously. It makes us cranky.

(CM704B)

SKU CM704B
Brand Bosch
Shipping Weight 0.2360kg
Shipping Width 0.120m
Shipping Height 0.070m
Shipping Length 0.240m
Shipping Cubic 0.002016000m3
