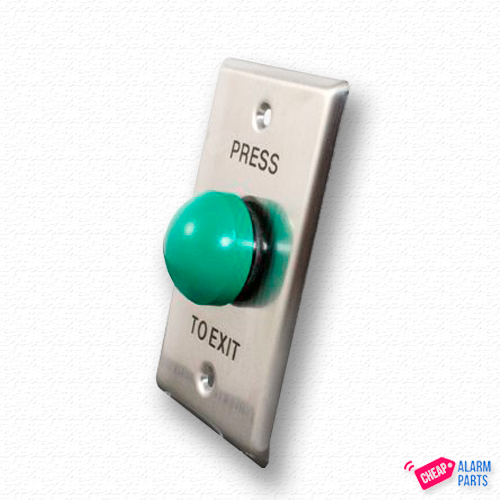

Green High Impact 22mm IP67 Dome Button & Stainless
with Press to Exit engraved
Green High Impact 22mm IP67 Dome Button & Stainless with Press to Exit engraved
- IP Rating: IP67
- Contacts: DPDT NO/NC
- Operation: NON LATCHING
- Operating Cycles: 50,000 cycles
- Plate: Standard 22mm Engraved with Press to Exit
- Terminals: Solder / Fasten Terminals
- Button Size (mm): 35 (Ø) x 51.7 (D)
- Plate Size (mm): 75 (W) x 115 (H)
The SPRL22DOME has an IP rating of 67 which is achieved by use of the sealingwasher which is fitted to the switch before it is inserted into the panel hole cut out. It is held into the panel by means of a zinc lock nut, tightened down to 1.5Nm to2.85Nm to achieve the correct sealing pressure. A double ‘D’ flat is provided to prevent rotation.
