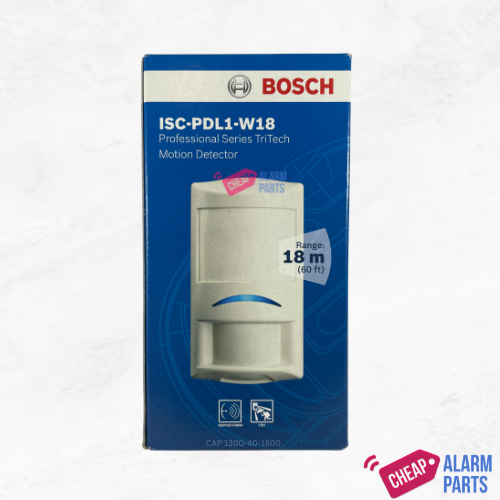

Professional Series TriTech



Quick Overview:

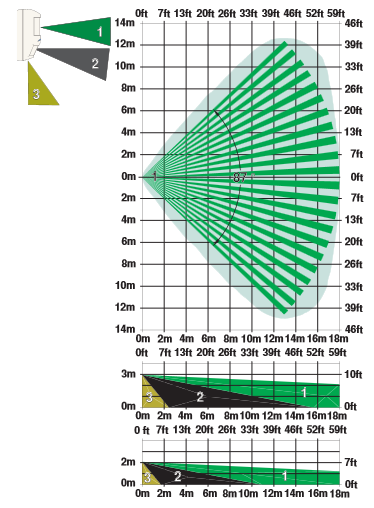

• 18 m x 25 m (60 ft x 80 ft) coverage, field selectable to 8 m x 10 m (25 ft x 33 ft).
• Sensor data fusion technology,
• Available from Cheap Alarm Parts.
• Tri-focus optics technology,
• Range adaptive radar.
• Microwave anti-mask,



The Blurb:

The ISC-PDL1-W18x Professional Series TriTech Detectors are exceptionally suited for commercial indoor applications. Sensor data fusion technology ensures that the detectors send alarm conditions based on precise information. Tri-focus optics eliminate coverage gaps and respond efficiently to intruders. The powerful combination of unique features in the Professional Series delivers superior catch performance and virtually eliminates false alarms.

The self-locking two-piece enclosure, built-in bubble level, flexible mounting height, and three optional mounting brackets simplify installation and reduce service time.



All images and text are copyright Cheap Alarm Parts.



Specifications:

• Microwave Anti-mask
• Supervised Microwave and PIR
• Active White Light Suppression
• Field Selectable Coverage (18 m x 25 m or 8 m x 10 m)
• Dynamic Temperature Compensation
• Cover and Wall Tamper Switch
• Self-adjusting LED
• Remote Walk Test LED
• Alarm Memory
• Solid State Relays
• Draft, Insect, and Small Animal Immunity
• Remote Self Test
• Input Power Supervision
• Trouble Memory
• Cloak and Camouflage Detection Technology





Specifications:

Voltage:	9 VDC to 15 VDC
Current (Maximum):	< 25 mA
Current (Standby):	13 mA
Relay:	Solid state relay, normally-closed (NC) contacts power supervised. 3 W, 125 mA, 25 VDC, resistance < 10 Ω.
Tamper:	Normally-closed (NC) contacts (with cover on) rated at 25 VDC, 125 mA maximum. Connect tamper circuit to 24-hour protection circuit.
Trouble:	Solid‑state relay normally-closed (NC) contacts.
Dimensions:	136 mm x 69 mm x 58 mm (5.25 in. x 2.75 in. x 2.25 in.)
Radio Frequency Interference (RFI) immunity:	No alarm or setup on critical frequencies in the range from 26 MHz to 1 GHz at 50 V/m
Relative Humidity:	0 to 95%, non-condensing
Temperature:	-29°C to +55°C (-20°F to +130°F) For UL Certificated installations, 0°C to +49°C (+32°F to +120°F)
Protection Rating:	IP41, IK04 (EN 60529, EN 50102)
