$99.01
In Stock
Fast Shipping | Secure Checkout | Australian Stock |

Flush mount and wireless!

Calculate Shipping



Flat Rate Shipping - $14.95
Flat Rate Shipping

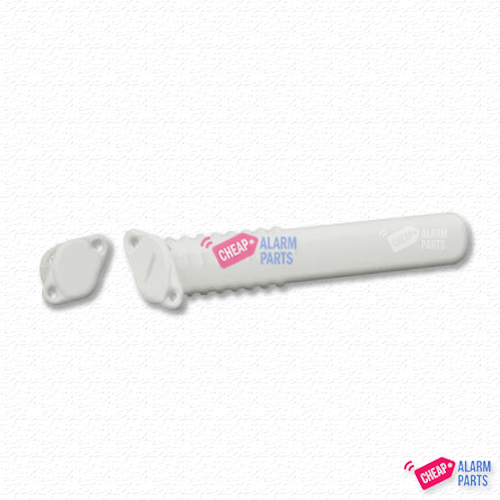

Bosch Radion Wireless Flush Mount Door/Window Contact Reed RFDW-RM





Quick Overview:

  • Self-contained transmitter with magnetic reed switch contact.
  • Concealed, recessed mounting in doors or windows for unobtrusive security.
  • Available from Cheap Alarm Parts.
  • Operational up to 5 years using a single user replaceable AAA Lithium battery.
  • Supervised for low-battery and cover-tamper conditions.




The Blurb:

RADION wireless from Bosch provides the range, scalability and exceptional battery life required to ensure reliable performance and superior quality. Advanced diagnostics and multiple device enrollment options make installation and maintenance simple and cost effective. With a complete line of peripherals, RADION provides the flexibility for virtually any application requirement.





Specifications:

Trandmitter Dimensions: 15.4mm x 104.7mm (0.60 in x 4.2 in)
Magnet Dimensions: 22mm x 28mm x 15mm (0.87 in x 1.10 in x 0.59 in)
Voltage: 1.5VDC
Battery Type: AAA Lithium
Battery Life: Up to 5 years
Temperature: Functional range: -10°C to +49° (+14°F to + 120°F) / UL only: 0°C to +49°C (+32°F to + 120°F) / EN 50130-5 Class II only: -10°C to 40°C (+40°F to +104°F)
Environment: Complies with EN50130-5 Class II
Relative Humidity: Up to 93% non-condensing
Cover Tamper Detection: Transmits a tamper switch signal when the cover is removed from the detector.
Frequency: 433.42MHz.
Use: Intended for indoor use.




Compatibity:

  • RF3212E Receiver
  • Radion SD12 bus compatible receiver
  • Solution Ultima 880
  • Solution 16i
  • Solution 16Plus
  • Solution 64
  • Solution 144
  • Solution 6000
  • Solution 3000




Downloads:

pdf.png Flush Mount Contact Data Sheet (212kb)
pdf.png Flush Mount Contact Installation Guide (360kb)







All images and text are copyright Cheap Alarm Parts.
Please don't copy them and put them on your website. Seriously. It makes us cranky.

(RFDW-RM)

SKU RFDW-RM
Brand Bosch
Shipping Weight 0.2500kg
Shipping Width 0.100m
Shipping Height 0.070m
Shipping Length 0.150m
Shipping Cubic 0.001050000m3
