RRP $177.00
$162.26
SAVE $14.74 (8%)
Sold Out - Backorder Available


Calculate Shipping

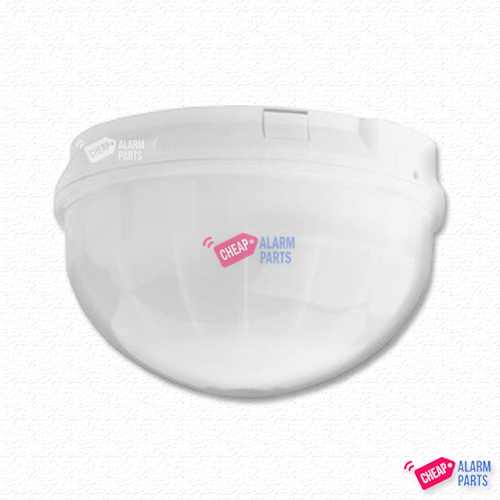

DS938Z Panoranic PIR Detector





Quick Overview:

  • Motion Analyzer II processing.
  • Motion Monitor.
  • Self-test supervision systems.
  • Changeable mirrors.
  • Available from Cheap Alarm Parts.
  • 360° x 18 m (60 ft) diameter pattern.
  • 2.5 m to 6 m (8 ft to 18 ft) mounting height.



All images and text are copyright Cheap Alarm Parts.





Specifications:

Material: High impact ABS plastic enclosure
Dimensions: 8.4 cm x 13.3 cm(3.3 in x 5.25 in)
Operating Temperature: -29°C to +49°C (-20°F to +120°F)For UL Listed Applications, 0°C to + 49°C (+32°F to +120°F)
Radio Frequency Interference (RFI) Immunity: No alarm or setup on critical frequencies in the range from 26 MHz to 950 MHz at 50 V/m.
DS938Z: Complies with Environmental Class II (EN50130-5)
Height (recommended): 2.5 m to 6 m (8 ft to 18 ft)
Location: Mounts directly to ceiling or to standard octagonal electrical box.
Internal Pointability: Coverage is adjustable ±10° horizontally, +2° to -18° vertically.
Alarm: Form C reed relay at 3.0 W, 125 mA at 28 VDC for resistive loads
Tamper: Normally-closed. Contacts rated at 28 VDC, 125 mA maximum.
Alarm: Signal through POPEX data bus.
Tamper: Signal through POPEX data bus. Signaled as missing.
Trouble: Signal through POPEX data bus.
Current: 18 mA at 12 VDC
Voltage: 6 VDC to 15 VDC







All images and text are copyright Cheap Alarm Parts.
Please don't copy them and put them on your website. Seriously. It makes us cranky.

(DS938Z)

SKU DS938Z
Brand Bosch
Shipping Weight 0.4000kg
Shipping Width 0.150m
Shipping Height 0.200m
Shipping Length 0.200m
Shipping Cubic 0.006000000m3
