RRP $208.00
$185.58
SAVE $22.42 (11%)
Sold Out - Backorder Available


Calculate Shipping

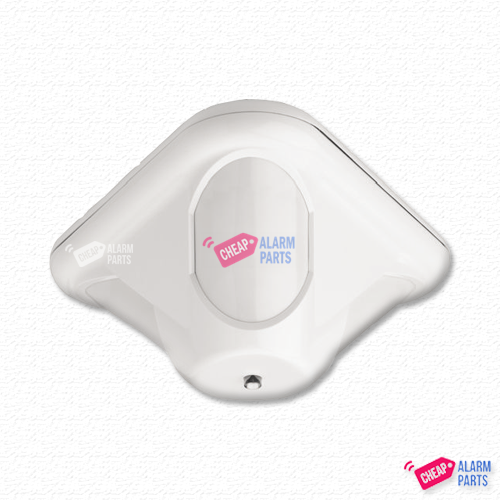

DS939 Panoramic Detector





Quick Overview:

  • Up to 7.6 m (25 ft) mounting height
  • Fully adjustable optics for coverage integrity and customization
  • Hinged chassis and base plate for easy installation
  • Available from Cheap Alarm Parts.
  • High efficiency LED and light pipe system for easy walk testing
  • First Step Processing (FSP)
  • 360° x 21 m (70 ft) diameter pattern



All images and text are copyright Cheap Alarm Parts.





Specifications:

Properties: Modular chassis and hinged mounting base design provide easy access to field setup switches and wiring.
Dimensions: 8.9 cm x 17.8 cm (3.5 in. x 7 in.)
Operating Temperature: -40°C to +49°C (-40°F to +120°F)For UL Certificated installations, 0°C to +49°C (+32°F to +120°F)
Sensitivity: Low/High gain settings
Height Range: 3 m to 7.6 m (8 ft to 25 ft) recommended
Location: Mounts directly to ceiling or to standard 10.2 cm (4 in.) octagonal electrical box.
Internal Pointability: Coverage is adjustable ±10° horizontally, +2° to -18° vertically.
Alarm Relay: Silent-operating form C relay. Contacts rated 125 mA, 28 VDC, 3 W maximum for DC resistive loads.
Tamper: Normally-closed (with cover in place) tamper switch. A wall (base) tamper is included. Contacts rated at 28 VDC, 125 mA, 3 W maximum.
Current: 12 mA standby; 39 mA in alarm with LEDs enabled
Voltage: 9 VDC to 15 VDC




All images and text are copyright Cheap Alarm Parts.
Please don't copy them and put them on your website. Seriously. It makes us cranky.

(DS939)

SKU DS939
Brand Bosch
Shipping Weight 0.5140kg
Shipping Width 0.150m
Shipping Height 0.200m
Shipping Length 0.200m
Shipping Cubic 0.006000000m3
