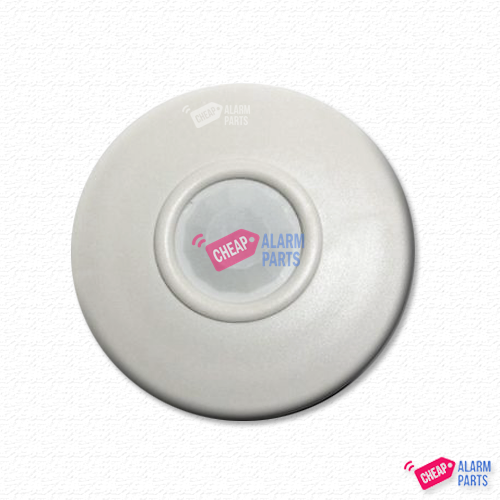

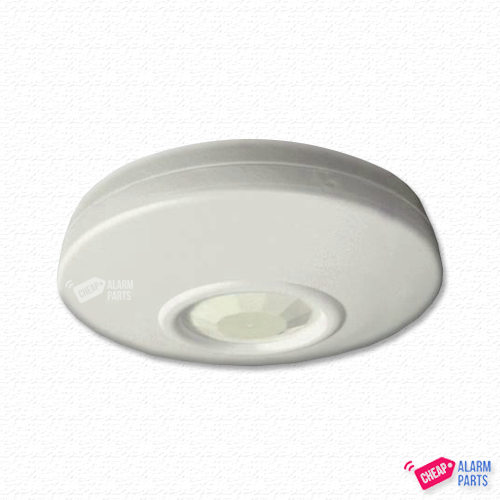

PIR - Ceiling Mount low profile PIR





Quick Overview:

  • Enhanced signal processing.
  • 360° x 7.5 m (24 ft) pattern.
  • Surface/semi-flush mountable.
  • Available from Cheap Alarm Parts.
  • Internal pointability.
  • Sealed detector chamber.
  • Mounting height 2 m to 3.6 m (7 ft to 12 ft)




The Blurb:

The ceiling mount, low profile panoramic DS936 PIR Detector uses alternate polarity pulse count. It also uses a pointable Fresnel lens to provide up to 7.5 m (24 ft) of coverage and can be mounted on the surface, or semi-flush directly to a ceiling or a standard octagonal electrical box.



All images and text are copyright Cheap Alarm Parts.

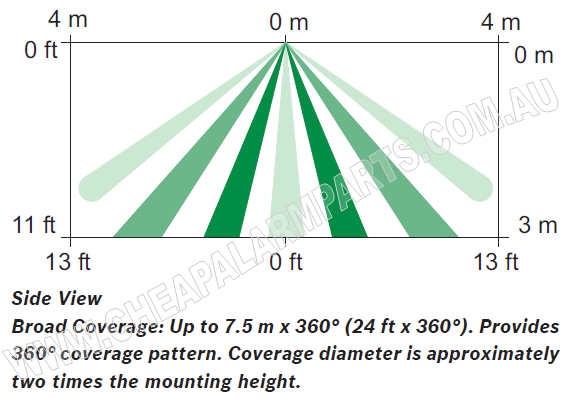

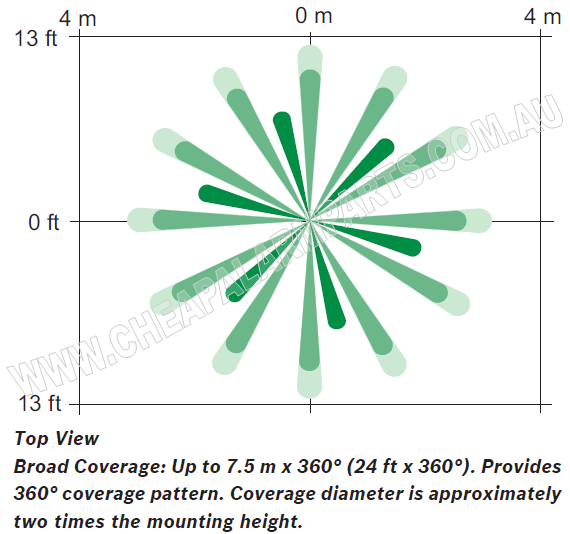

Coverage Patterns:







Specifications:

Material: High impact ABS plastic enclosure.
Dimensions: 3.05 cm x 11.7 cm (1.2 in. x 4.6 in.)
Temperature -29°C to +49°C (-20°F to +120°F) For UL Certificated installations, 0°C to +49°C (+32°F to +120°F)
Radio Frequency Interference (RFI) Immunity: No alarm or setup on critical frequencies in the range from 26 MHz to 950 MHz at 50 V/m
DS936: Complies with Environmental Class II (EN50130-5)
Height Range: 2 m to 3.6 m (7 ft to 12 ft)
Location: Surface or semi-flush on ceiling or on standard 10 cm (4 in.) octagonal electrical box
Pattern Pointability: ±15° rotational
Alarm: Normally-closed reed relay rated at 3.0 W, 125 mA at 28 VDC for resistive loads and protected by a 4.7 Ω resistor in the common C leg.
Tamper: Normally-closed cover activated tamper switch with separate terminals. Tamper contacts rated 125 mA at 28 VDC maximum
Current: 20 mA at 12 VDC
Voltage: 10 VDC to 15 VDC




All images and text are copyright Cheap Alarm Parts.
Please don't copy them and put them on your website. Seriously. It makes us cranky.

(DS936)

SKU DS936
Brand Bosch
Shipping Weight 0.2820kg
Shipping Width 0.120m
Shipping Height 0.070m
Shipping Length 0.240m
Shipping Cubic 0.001000000m3
