$75.14
In Stock


Great for access control systems and anywhere accurate time stamping is required.

Calculate Shipping

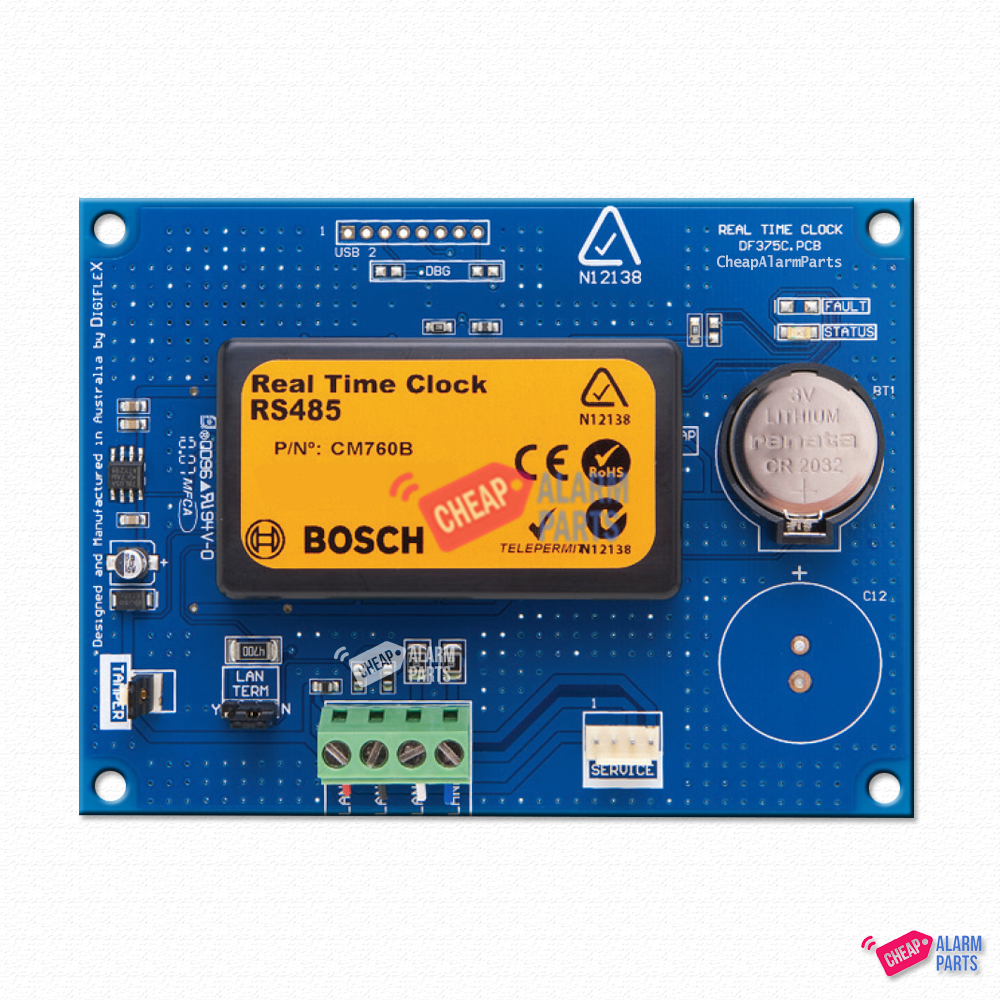

CM760B Real Time Clock for Solution 144 and 6000





Quick Overview:

  • Accuracy better than =/- 2 minutes / calendar year.
  • Simple RS485 LAN connection to control panel.
  • Local low battery fault indicator and dedicated tamper input.
  • LAN monitored, encrypted data and anti-substitution.
  • Service keypad connection point included.
  • Available from Cheap Alarm Parts.




Specifications:

Power Requirements
Operating Voltage: 10.5V DC - 14.0V DC @ 50mA Stand-by
Battery Type: 3V Lithilum button cell type (CR2032 size)
Battery Life: Approx. 3 years
Connections
Module Connection (RS485 LAN): Max total LAN length using multi-strand security cable = 300mMax total LAN Length using 2 pair twisted shielded data cable (Belden 8723) - 1200mSee manual for complete wiring instructions.
Inputs Cabinet tamper
Fixing Method: The CM760 can be mounted in the MW700, Mw710, MW720 or MW730 enclosures using clip in PCB mounts supplied
Accuracy: Better than +/- 2 minutes per calendar year
Environmental Considerations:
Temperature: 0o to 55oC Relative humidity 5% to 85% at 30oC non-condensing
Dimensions: 115(W) x 86(D) x 30H)mm
Warranty: 3 years




Compatibity:

  • Solution 6000
  • Solution 144
  • Solution 16i




All images and text are copyright Cheap Alarm Parts.
Please don't copy them and put them on your website. Seriously. It makes us cranky.

(CM760B)

SKU CM760B
Brand Bosch
Shipping Weight 0.0970kg
Shipping Width 0.100m
Shipping Height 0.300m
Shipping Length 0.160m
